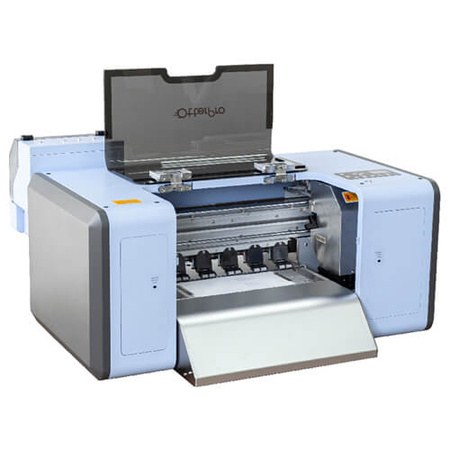

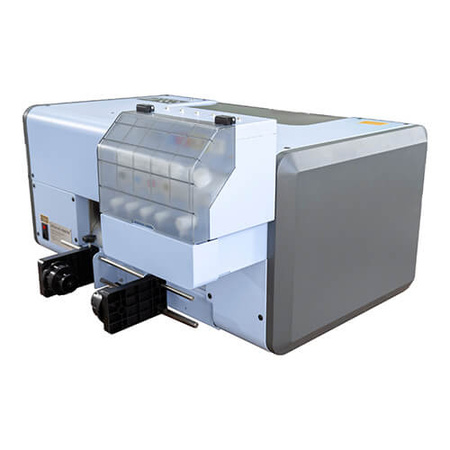

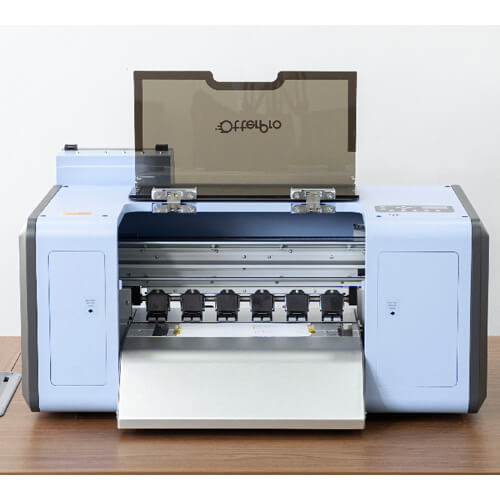

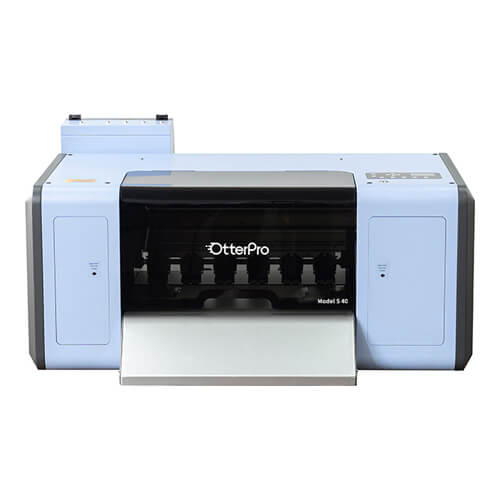

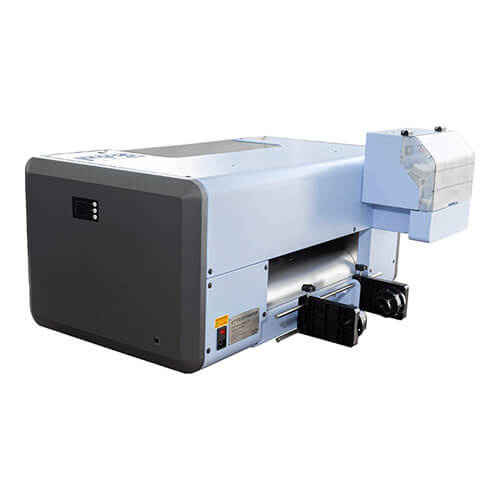

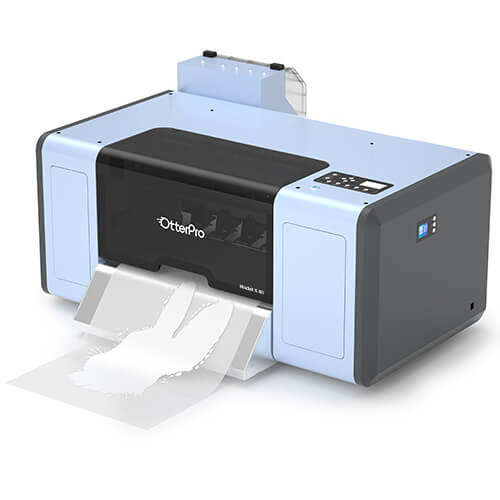

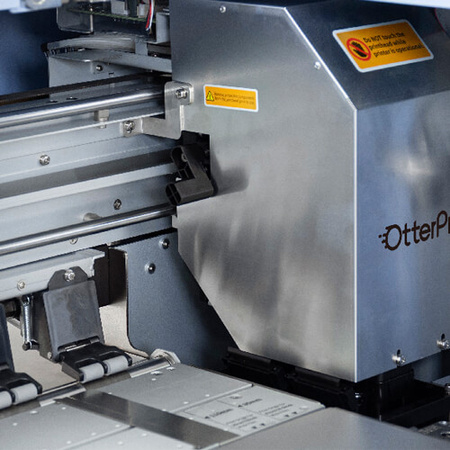

Otter 40DTF printer with two Epson i1600 heads
- Otter 40DTF printer with two Epson i1600 heads
NOTES: We price transportation individually.
Technical data:

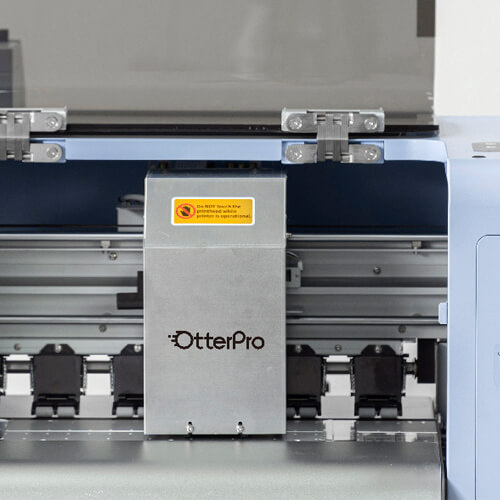

- Printhead: Epson i1600, 2 pcs.
- Printhead resolution: 360 npi 480 npi
- Printer dimensions: 100 x 86.5 x 52.5 cm
- Maximum print width: 448 mm / 17.6 inches
- Print speed:
- 720x1200 dpi (4 passes) 3.5-5.0 m²/h
- 720x1800 dpi (6 passes) 2.5-3.5 m²/h
- 720*2400 dpi (8 passes) 2.0-3.0 m²/h
- Printer software: Otter DTF 40
- Design software: Otter DTF RIP

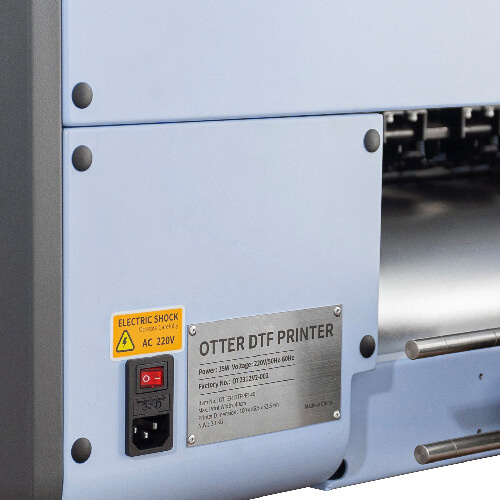

- Power: 300 W 5A-10A
- Net weight: 75 kg
- Voltage: 110V-220V 50Hz-60Hz
- System: Windows 7 (IOS is not yet supported)

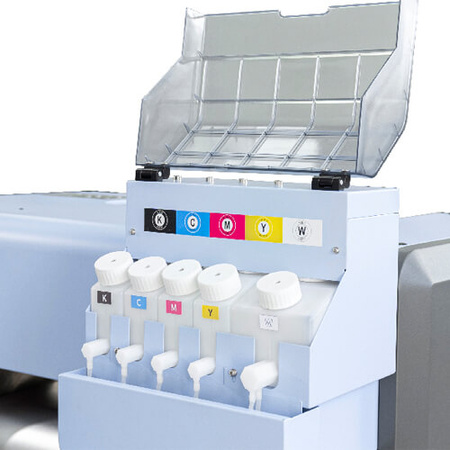

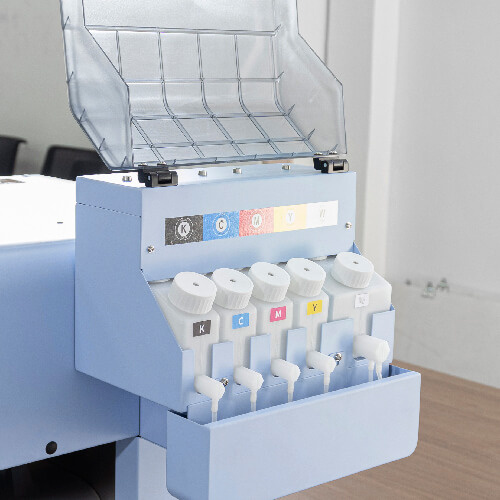

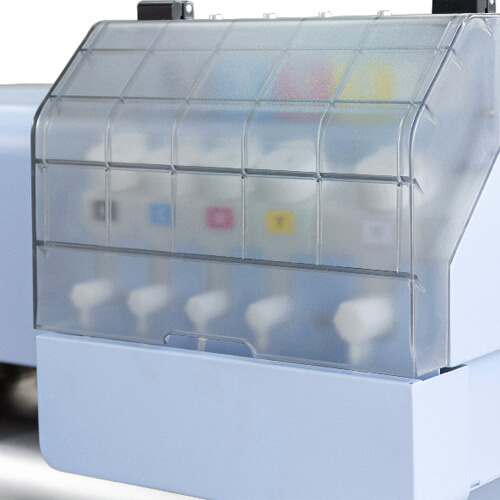

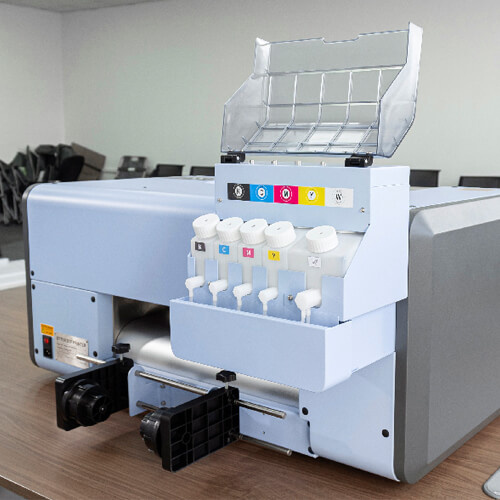

- Color configuration: H1 K+C+M+Y H2: W+W+W+W
- Supported printing with white ink
- Mixing white ink: yes

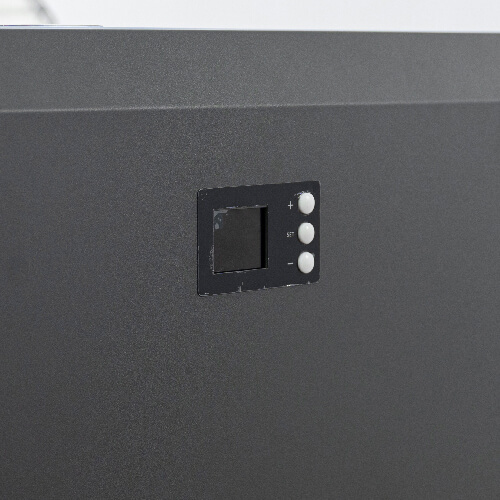

- Heating function: yes
- Operating temperature: 15-30℃, humidity 35-65% (non-condensing)
- Supported formats: PRT, PRN, BMP, JPG, PNG, TIFF, EPS, PDF
- Accessories: Cap Top x 2, Cap Top ink tube x 4, cable tape x 2, ink suppressor x 2, power cable x 1, 20 ml syringe x 1, M3 screw x 12, M4 screw x 6, Power cord x 1, Allen wrench set x 1, Phillips screwdriver x 1
- Packaging: wooden box
User Manual
Wide application
DTF technology makes it possible to print on cotton fabrics and opens up new opportunities for the custom apparel industry. Works amazingly well on almost all types of fabrics, including t-shirts, safety vests, hats, masks, shoes, banners, towels, aprons, bags, slippers, PU notepads, coasters and much more.
This software significantly increases the productivity of DTF printing projects! It has a simple but powerful interface, allowing you to effortlessly master image editing and design. What's more, it supports automatic layout of multiple images and duplicate printing, which greatly increases productivity. Superior color printing ensures that DTF printers achieve "what you see" results!
Warranty on Otter DTF products
Warranty document in PDF format is available to download here
