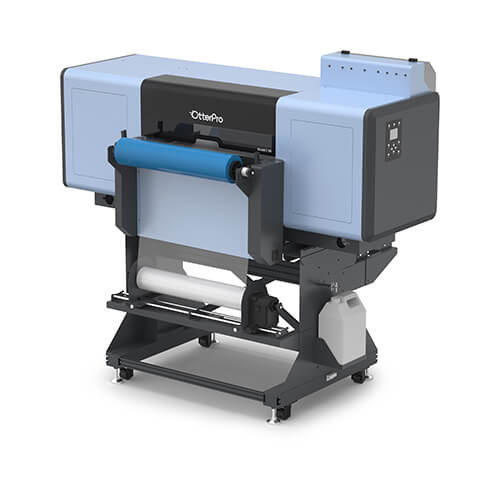

OtterPro Model C 60 UV DTF printer with three Epson i1600-E1 heads

Why choose the C 60 model?

Model C 60 is a large-format UV DTF printer with a maximum print width of 62 cm (24.4 inches). Equipped with 3 Epson i1600-E1 printheads, specially designed for industrial printing, it provides exceptional performance for larger sizes and high-volume UV DTF printing jobs. This printer is built to meet the demands of business and industrial production, providing performance, reliability and excellent print quality for your projects.

Integration of printing and lamination

No need for an additional laminator! The C 60 combines printing and lamination in one machine, making the process smooth and efficient. It prints on film A, cures it with built-in LED lights and automatically laminates it with film B, handling the entire process itself.

Intelligent automatic system

Features automatic cleaning, self-maintenance, warns of low ink levels and detects when film is missing.

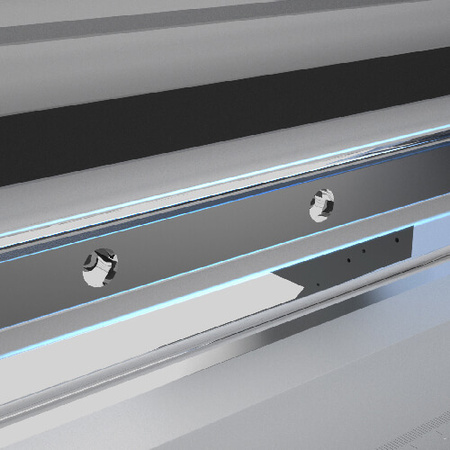

Silenced guide rail

Silenced guide rail is a guarantee of high precision and stable operation with minimal noise.

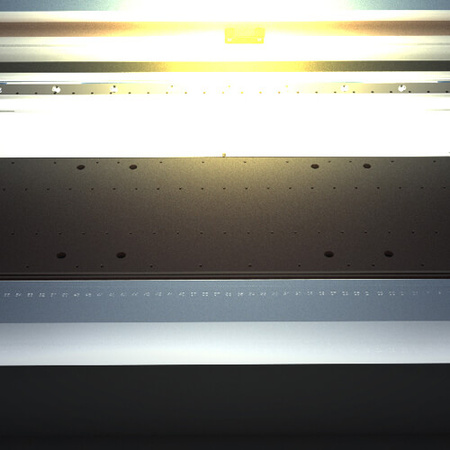

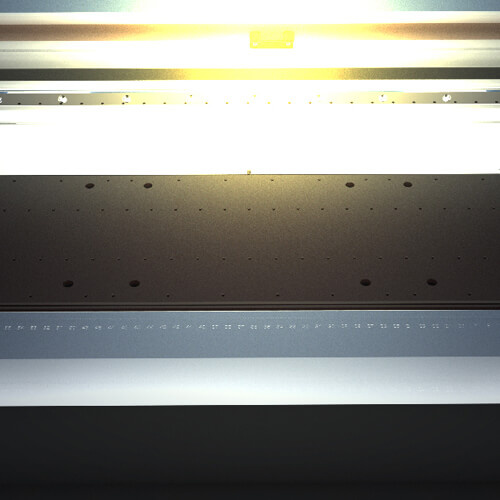

Three-stage suction platform

Three-stage adjustable suction platform securely holds transparencies in place, ensuring smooth, flawless prints every time, and preventing printhead scratches from film contact.

Adjustable heating rollers

Provide precise and even heat distribution for a bubble-free laminating effect.

Leadshine stepper motor

Advanced, high-quality motor ensures smooth, precise and stable movement during your projects.

Premium components

Surface and printing platform with corrosion-resistant coating for greater durability; integrated LED lighting; base frame has specially designed cutouts for easy machine handling.

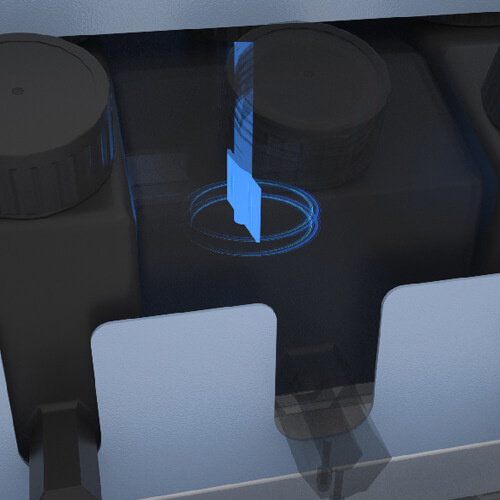

Adjustable, automatic mixing of white ink

Prevents white ink precipitation, minimizes the risk of printer clogging and extends the life of the UV DTF printer.

Otter RIP Software

This software significantly increases the productivity of DTF printing projects! It has a simple but powerful interface, allowing you to effortlessly master image editing and design. What's more, it supports automatic layout of multiple images and duplicate printing, which greatly increases productivity. Superior color printing ensures that DTF printers achieve "what you see" results!

• Product code: MODELC60LB

Specification

• Printhead: EPSON I1600 E1 X3/4
• Nozzle resolution: 300NPI 600NPI
• Print speed:
• 960 x 900 dpi 6 passes - 3.5 - 5 m/ hr.
• 960 x 1200 dpi 8 pass - 2.5 - 3.5 m/ hr.


• Power supply: 220 V ± 10% 50 Hz-60 Hz
• Power: Power: 330W 5A-10A
• Work environment:
• Temperature: 15-30°C
• Humidity: 35-65% (non-condensing)


• Printer software: Otterpro C 60 UV DTF
• Language options (control panel):
• english
• chinese


• Design Software: Otterpro RIP
• Language options (software):
• english
• chinese
• french
• german
• italian
• polish
• portuguese
• spanish
• Ink type: UV DTF
• Ink color:
• H3: K+C+M+Y H2: W+W+W+W
• H4: V+V+V+V H1:
• Printing method: complete hierarchical printing using white ink, color and varnish
• Ink blending system: automatic for white ink
• Head maintenance: automatic cleaning, ink removal, humidification
• Heating system: adjustable heating rollers
• Connection method: Gabit Ethernet port (computer must have a Gigabit Ethernet card)
• Connection method: Inspection system: low ink level, no film
• System requirements: Windows 7 or later (macOS is not supported)
• Supported formats: BMP, JPG, PNG, TIFF, TIF, PDF
• Print thickness: 0 - 3 mm
• Print width: 0-620 mm / 0-24.4 inches
• Dimensions: 148 x 220 x 110 cm
• Weight: 280 kg
• Warranty: UV DTF printer comes with a 2-year limited warranty. In addition, parts that come into contact with ink, including ink cartridges, print heads, wiper blades and other consumable parts are not covered by the warranty.
