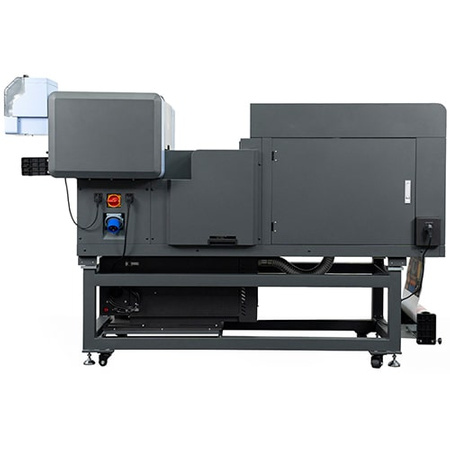

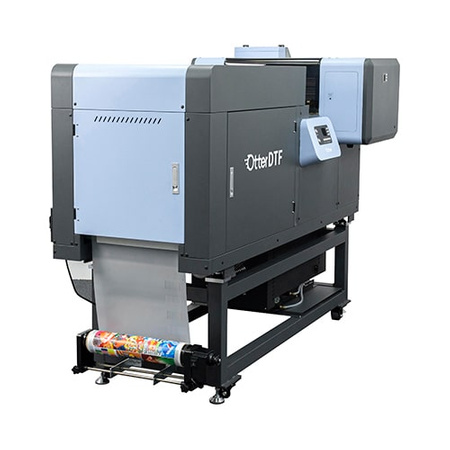

Otter DTF 40 multifunctional system

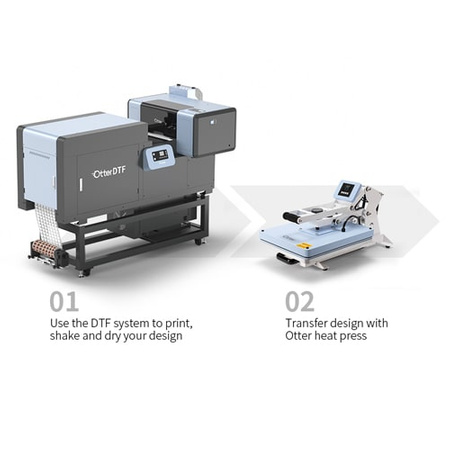

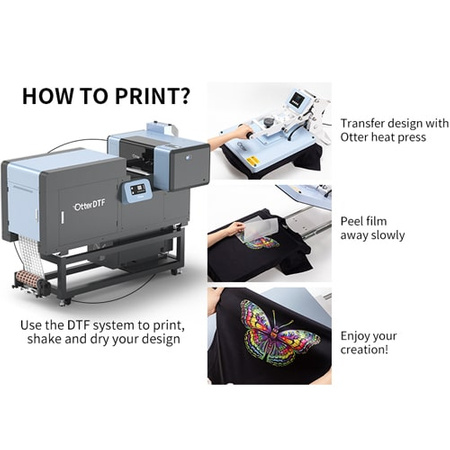

Otter DTF 40 multifunctional system The system combines the functions of printing, powder shaking, curing and purification to deliver productivity and quality in a compact package. Fully automated functions streamline the workflow for high productivity and top performance.

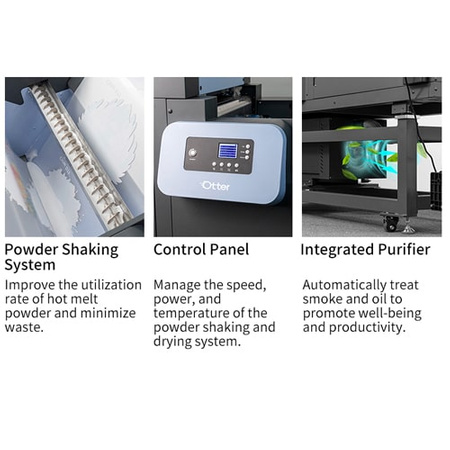

All-in-one DTF system:

• printing

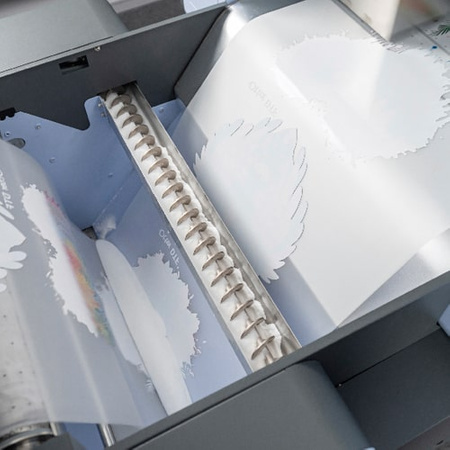

• powder shaking system
• drying system

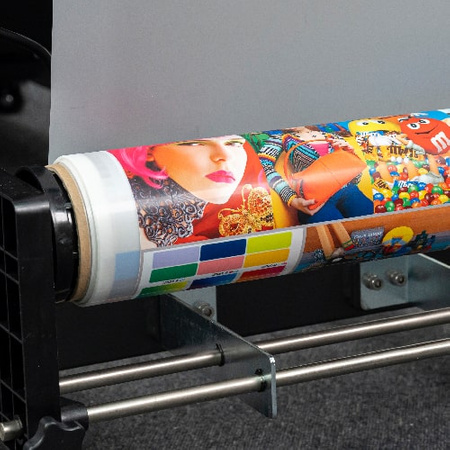

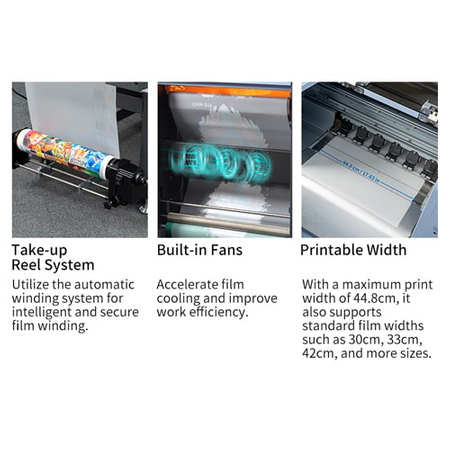

• the collection drum system

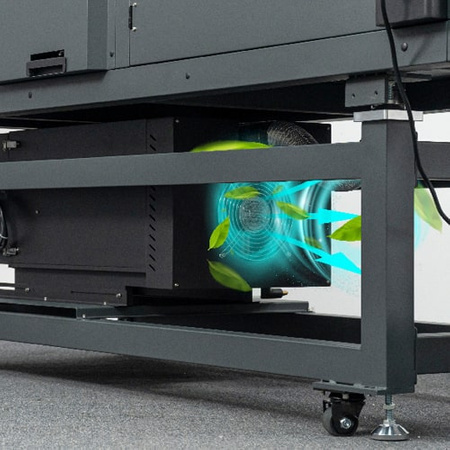

• built-in fans
• built-in cleaning

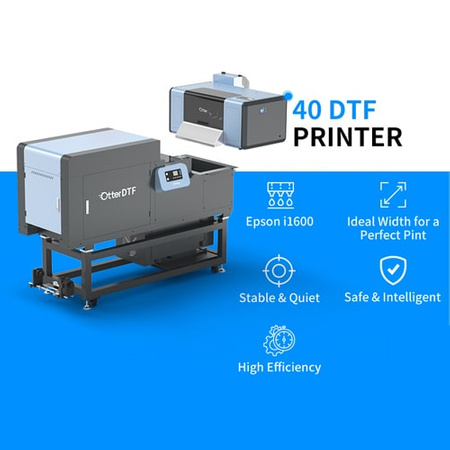

Printer 40 DTF:

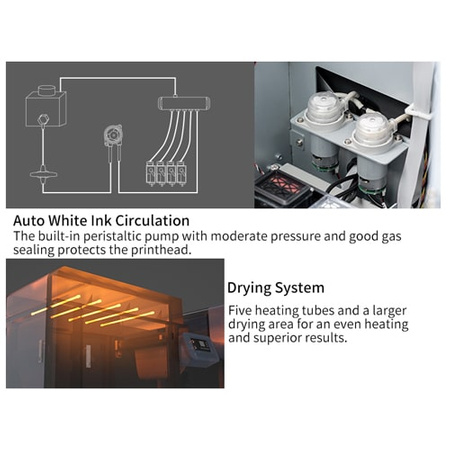

• automatic white ink circulation

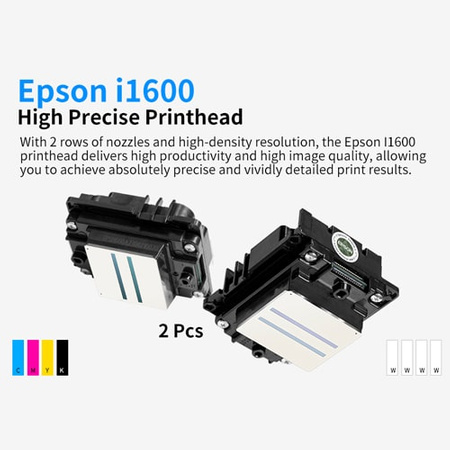

• Precision printhead (Epson i1600)
• three-stage heating system
• double silent circular guide rails
• adjustable vacuum adsorption platform
• ink supply system

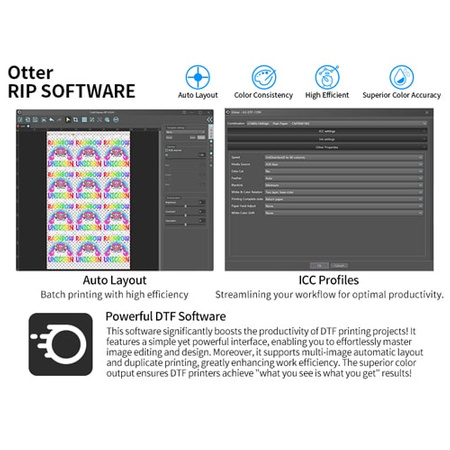

Otter RIP software included. This software significantly increases the productivity of DTF printing projects! It has a simple but powerful interface, enabling you to master image editing and design effortlessly. What's more, it supports automatic multi-image layout and duplicate printing, which significantly increases productivity. Excellent colour output ensures that DTF printers achieve 'what you see' results.

• Product code: OT-AIODTF40LB
• Printhead: Epson i1600, 2 pcs.
• Nozzle resolution: 300 dpi 600 dpi
• Maximum print width: 448 mm /17,6 cala
• Print speed:
• 720 x 1200 dpi (4 runs): 3,5–5,0 m²/h
• 720 x 1800 dpi (6 runs): 2,5–3,5 m²/h
• 720 x 2400 dpi (8 runs): 2,0–3,0 m²/h
• Printer software: Otter DTF 40
• Design software: Otter DTF RIP
• System: Window7 (system IOS nie jest jeszcze obsługiwany)
• Supported printing of white colour: yes
• Mixing white ink: yes
• Operating temperature: 15-30°C, humidity 35-65% (without condensation)
• Supported formats: PRT, PRN,BMP, JPG, PNG, TIFF, EPS, PDF

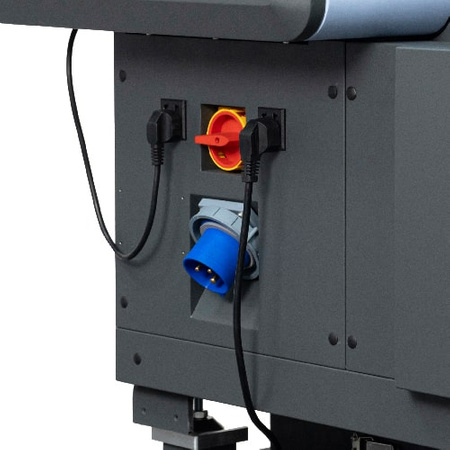

• Voltage: 110 V-220 V 50 Hz-60 Hz
• Power: 2800 W ±5%
• Weight: 285 kg
